ROUGH COUNTRY
5 INCH LIFT KIT CHEVY SILVERADO & GMC SIERRA 1500 4WD (2007-2013)
5 INCH LIFT KIT CHEVY SILVERADO & GMC SIERRA 1500 4WD (2007-2013)
Couldn't load pickup availability
Dealer
$500+
Backed
Shop

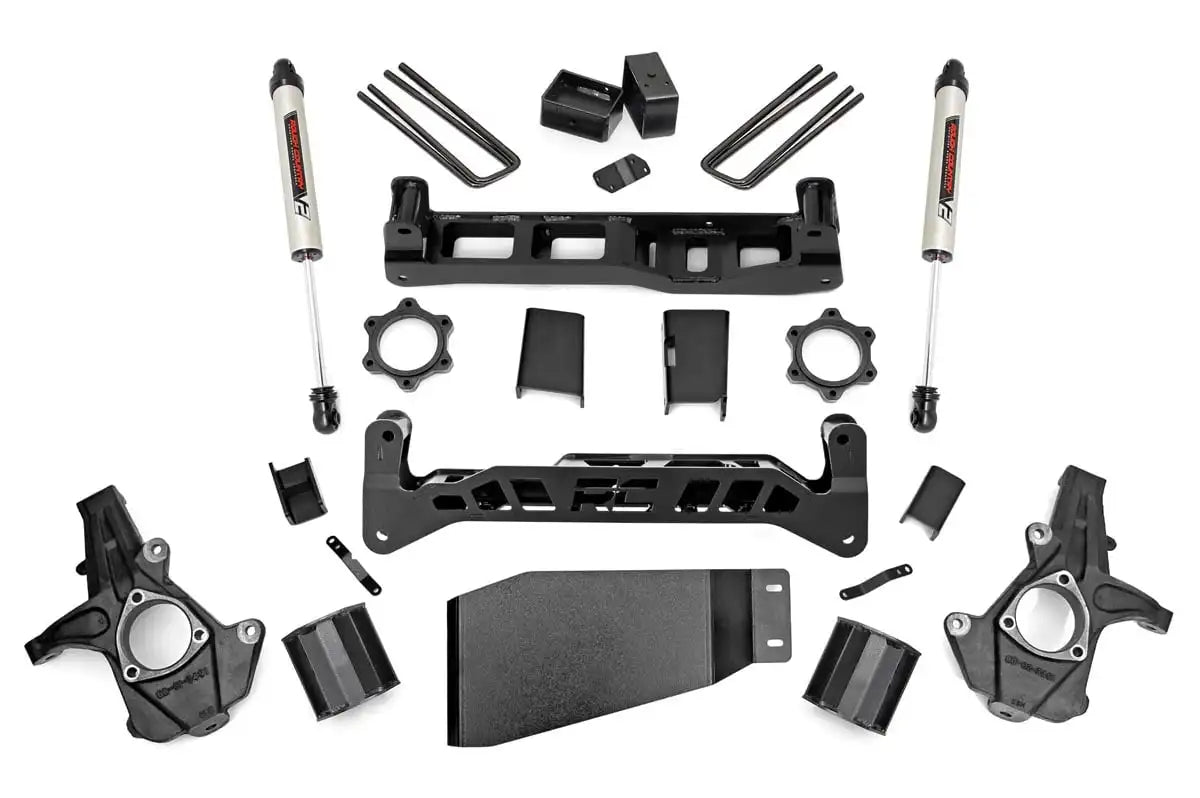

Rough Country's astounding 5-inch Suspension Lift will completely transform your 2007–2013 Chevy/GMC 1500 Pickup. With the help of this complete kit, you may use 20-inch factory wheels with up to 33-inch tires. Your truck may reach a monster stance with the help of a set of elevated knuckles, front and rear crossmembers, 4.5-inch custom rear blocks, and upper strut spacers. To maintain ideal angles after raising, this 1500 lif kit also includes differential drop brackets, CV spacers, sway-bar drop brackets, and rear brake line brackets. Important parts are kept safe by a sturdy bottom skid plate, and our Premium N3 shocks enable uncompromising off-road performance. This 1500 lift kit, which is made entirely of materials that were precisely laser cut by Rough Country engineers, installs quickly and perfectly.
FEATURES
- Can run 33" tires on factory 20" wheels.
- Provides highly sought level stance.
- High clearance crossmember design gives unmatched ground clearance.
- Requires no modification to the stock drivetrain or exhaust.
- 100% precision laser cut materials using the latest computer aided design process.
- No need to disassemble your struts to install.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

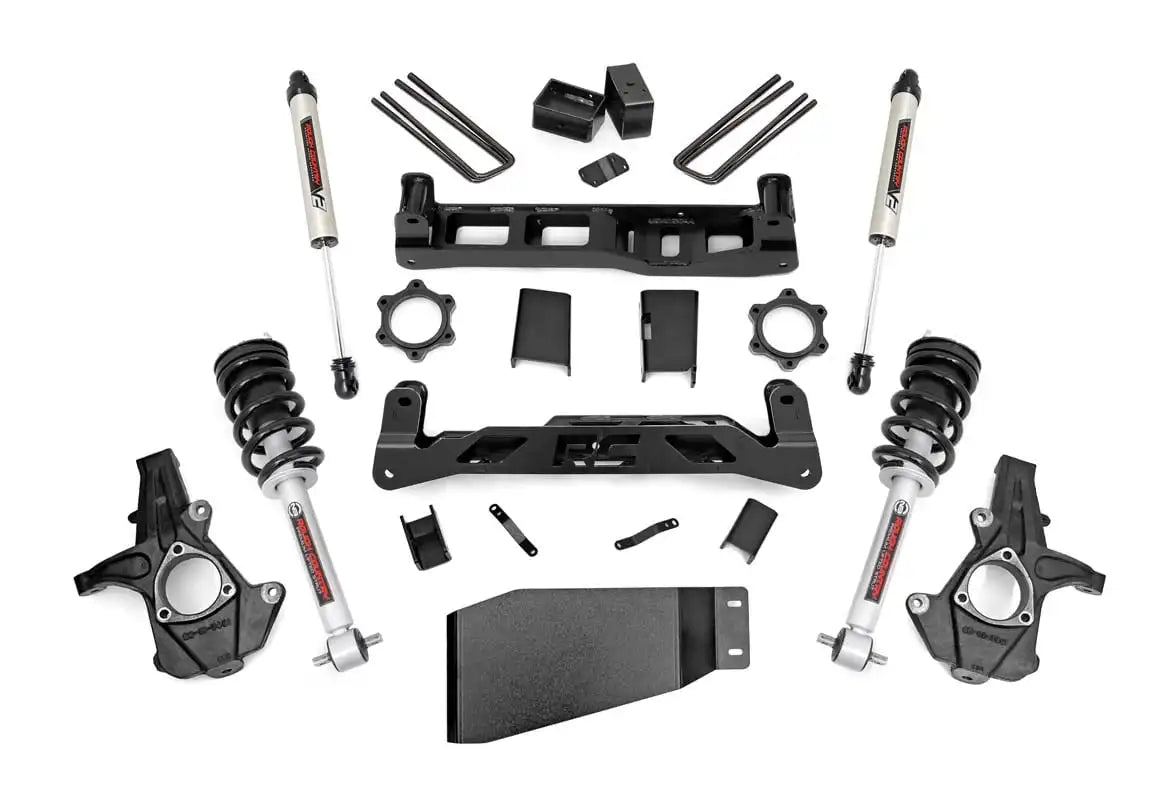

Optional N3 Loaded Struts
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Structurally engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
Optional V2 Monotube Shocks
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
VEHICLE FITMENT
| YEARS | DRIVE | MAKE | MODEL |
|---|---|---|---|
| 2007 - 2013 | 4WD | Chevy | Silverado 1500 |
| 2007 - 2013 | 4WD | GMC | Sierra 1500 |
TIRES
| TIRE | WHEEL | BOLT PATTERN | WHEEL OFFSET | NOTE |
|---|---|---|---|---|
| 285/65R18 | 18x9 | 6x5.5 | +0 | - |
| 285/65R18 | 18x9 | 6x5.5 | +1 | - |
| 285/65R18 | 18x9 | 6x5.5 | +18 | - |
| 285/65R18 | 18x9 | 6x5.5 | +19 | - |
| 285/65R18 | 18x9 | 6x5.5 | +20 | - |
| 295/60R20 | 20x10 | 6x5.5 | -18 | Trimming Required |
| 295/60R20 | 20x10 | 6x5.5 | -19 | Trimming Required |
| 295/60R20 | 20x9 | 6x5.5 | +0 | Minor Trimming |
| 295/60R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
| 295/60R20 | 20x9 | 6x5.5 | +18 | Minor Trimming |
| 295/60R20 | 20x9 | 6x5.5 | +20 | - |
| 305/55R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
| 305/55R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
| 305/55R20 | 20x9 | 6x5.5 | +0 | - |
| 305/55R20 | 20x9 | 6x5.5 | +1 | - |
| 305/55R20 | 20x9 | 6x5.5 | +18 | - |
| 305/55R20 | 20x9 | 6x5.5 | +20 | - |
| 305/65R18 | 18x9 | 6x5.5 | +18 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +0 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +1 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +18 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
| 33x12.50R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
| 33x12.50R20 | 20x9 | 6x5.5 | +0 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +1 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +18 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +20 | - |
| 33x12.50R22 | 22x10 | 6x5.5 | -19 | Minor Trimming |
