ROUGH COUNTRY
4 INCH LIFT KIT CHEVY SILVERADO & GMC SIERRA 1500 4WD (1999-2006 & CLASSIC)
4 INCH LIFT KIT CHEVY SILVERADO & GMC SIERRA 1500 4WD (1999-2006 & CLASSIC)
Regular price
$999.95 USD
Regular price
Sale price
$999.95 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Authorized
Dealer
Dealer
Free Shipping
$500+
$500+
Warranty
Backed
Backed
Real Texas
Shop
Shop

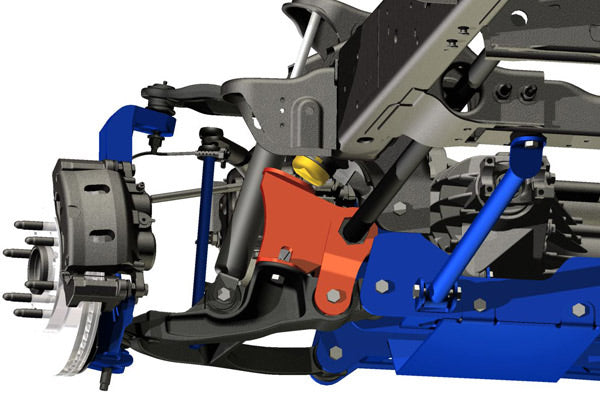

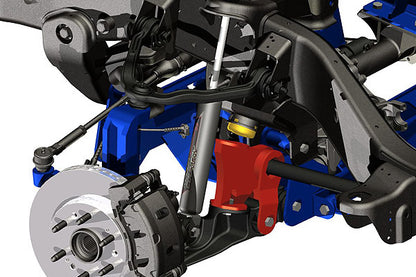

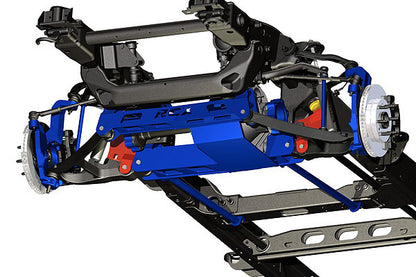

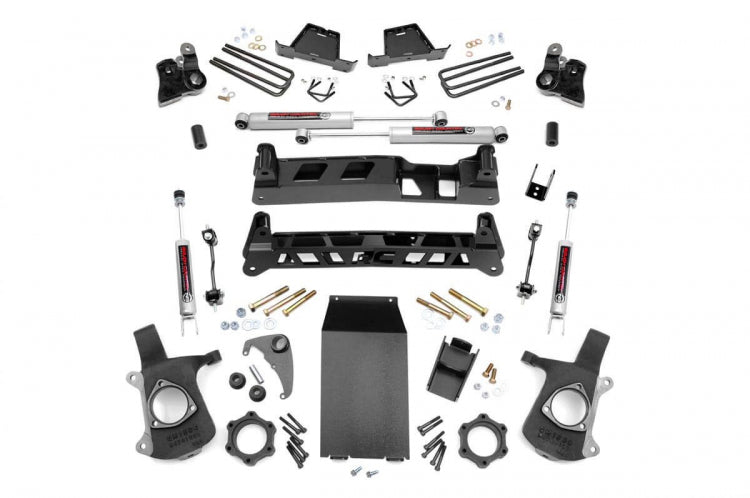

This NTD kit looks beautiful from every angle, is simpler to install, and handles better than before. Gain more clearance, improved handling, and the best-looking 4" lift on the market! Your 1500 can run up to 33" tires with a set of lifted front knuckles and 5" rear blocks, and a full set of drop crossmembers, differential drop brackets, and non torsion bar drop brackets keep everything tucked, hidden, and at the right angles. For one of our best kits at a fantastic price, this fully loaded suspension lift also includes a set of (4) Premium N3 Shocks, front CV spacers, sway-bar links, and a protective skid plate.
FEATURES
- Torsion bars stay in factory location
- Redesigned for easier installation
- Maintains factory ride quality
- Applicable with Auto Trac equipped models
- Unmatched ground clearance
- Axles maintain factory position and angle
- No drivetrain or exhaust modifications required
- Designed to reuse factory compression travel stops
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Will fit 2007 "Classic" models.
- Does NOT fit HD models.
- Does NOT fit 1999 "Classic" models.
- Differential modification required
- Frame bracket modification required
- If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
- Torsion bar unloading tool required for installation. Available below (#1067)
VEHICLE FITMENT
| YEARS | DRIVE | MAKE | MODEL |
|---|---|---|---|
| 1999-2006 | 4WD | Chevy | Silverado 1500 |
| 2007-2007 | 4WD | Chevy | Silverado 1500 Classic |
| 1999-2006 | 4WD | GMC | Sierra 1500 |
| 2007-2007 | 4WD | GMC | Sierra 1500 Classic |
RECOMMENDED TIRES & WHEELS
| TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
|---|---|---|---|---|
| 305/70R17 | 17x8.5 | 6x5.5 | +0 | - |
| 285/70R17 | 17x8.5 | 6x5.5 | +0 | - |
| 305/70R17 | 17x8.5 | 6x5.5 | +1 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | -12 | - |
| 285/70R17 | 17x9 | 6x5.5 | -12 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | +0 | - |
| 305/70R17 | 17x9 | 6x5.5 | +0 | - |
| 285/70R17 | 17x9 | 6x5.5 | +0 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | +1 | - |
| 305/70R17 | 17x9 | 6x5.5 | +1 | - |
| 285/70R17 | 17x9 | 6x5.5 | +1 | - |
| 305/65R18 | 18x8.5 | 6x5.5 | +0 | - |
| 305/65R18 | 18x8.5 | 6x5.5 | +1 | - |
| 285/65R18 | 18x9 | 6x5.5 | -12 | - |
| 305/65R18 | 18x9 | 6x5.5 | +0 | - |
| 285/65R18 | 18x9 | 6x5.5 | +0 | - |
| 305/65R18 | 18x9 | 6x5.5 | +1 | - |
| 285/65R18 | 18x9 | 6x5.5 | +1 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | -12 | - |
| 305/55R20 | 20x9 | 6x5.5 | -12 | - |
| 295/60R20 | 20x9 | 6x5.5 | -12 | Minor Trimming |
| 295/55R20 | 20x9 | 6x5.5 | -12 | - |
| 285/55R20 | 20x9 | 6x5.5 | -12 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +0 | - |
| 305/55R20 | 20x9 | 6x5.5 | +0 | - |
| 295/60R20 | 20x9 | 6x5.5 | +0 | Minor Trimming |
| 295/55R20 | 20x9 | 6x5.5 | +0 | - |
| 285/55R20 | 20x9 | 6x5.5 | +0 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +1 | - |
| 305/55R20 | 20x9 | 6x5.5 | +1 | - |
| 295/60R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
| 295/55R20 | 20x9 | 6x5.5 | +1 | - |
| 285/55R20 | 20x9 | 6x5.5 | +1 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -25 | - |
| 305/55R20 | 20x10 | 6x5.5 | -25 | - |
| 295/60R20 | 20x10 | 6x5.5 | -25 | - |
| 285/55R20 | 20x10 | 6x5.5 | -25 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -24 | - |
| 305/55R20 | 20x10 | 6x5.5 | -24 | - |
| 295/60R20 | 20x10 | 6x5.5 | -24 | - |
| 285/55R20 | 20x10 | 6x5.5 | -24 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -19 | - |
| 305/55R20 | 20x10 | 6x5.5 | -19 | - |
| 295/60R20 | 20x10 | 6x5.5 | -19 | - |
| 285/55R20 | 20x10 | 6x5.5 | -19 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -18 | - |
| 305/55R20 | 20x10 | 6x5.5 | -18 | - |
| 295/60R20 | 20x10 | 6x5.5 | -18 | - |
| 285/55R20 | 20x10 | 6x5.5 | -18 | - |
| 33x12.50R22 | 22x10 | 6x5.5 | -25 | Minor Trimming |
| 33x12.50R22 | 22x10 | 6x5.5 | -19 | Minor Trimming |
